034Motorsport Dynamic+ ECU and Gearbox Software Bundle - EA839 2.9T TFSI / AL552 ZF8

034Motorsport Dynamic+ Performance Software for the Audi B9/9.5 Audi RS4 & RS5 equipped with the EA839 2.9TT engine and Dynamic+ TCU Software Upgrade for AL552 ZF8 Transmission.

034Motorsport EA839 2.9TT ECU and TCU tunes are flashed directly through the factory OBD-II port using the 034Motorsport Dynamic+ End User Flashing Kit, and offer dramatic increases in horsepower and torque throughout the powerband.

Included at no extra cost is the Stage 1 Dynamic+ Performance TCU Software for the B9/B9.5 Audi RS4 & RS5 equipped with the AL552 8-Speed ZF8 transmission. At an extra cost, upgrade to the Stage 2 TCU Tuning to further enhance the shifting and acceleration of your ZF8 Equipped 2.9TT! Flashed directly through your vehicle’s OBD-II port, 034Motorsport’s proprietary calibrations for the AL552 TCU safely and effectively raise the torque limits of the ZF8, allowing your car to make use of Stage 1/1+ Performance Software.

The 034Motorsport Dynamic+ End User Flashing Kit allows customers to install their 034Motorsport Dynamic+ Performance Software themselves. In addition, End User Flashing allows Dynamic+ Performance Software customers to receive and install software updates and revisions, flash back to stock, or upgrade to the next stage of performance software for their vehicle.

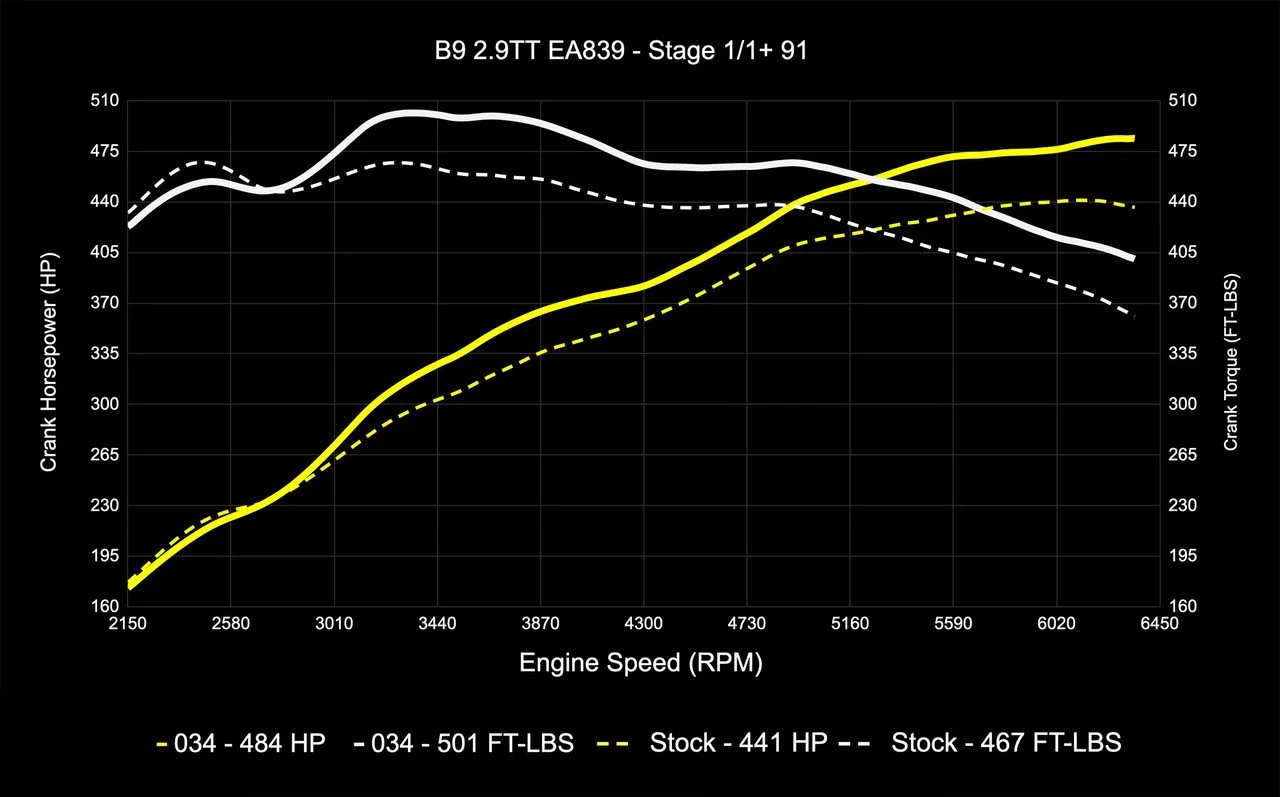

Stock: 441 HP / 467 TQ
Stage 1 95 RON: 484 HP / 501 lb/ft TQ
Stage 1 98 RON: 514 HP / 537 lb/ft TQ

This 034Motorsport Dynamic+ Performance Software can be installed for you, without the need to purchase the End User Flashing Kit, at Awesome's HQ in Manchester!

The 034Motorsport Dynamic+ Stage 1 Tuning Software for the Audi B9/B9.5 RS4 & RS5 equipped with the EA839 2.9TT V6 engine is designed to transform the driving experience of your vehicle! Flashed directly through your vehicle’s OBD-II port, 034Motorsport’s proprietary calibrations for the ECU safely and effectively increase the power output of the twin-turbocharged V6 in a refined manner. The result is a significant improvement in acceleration and throttle response, without any sacrifice in driveability or reliability.

034Motorsport B9/B9.5 Audi RS4 & RS5 EA839 2.9TT Dynamic+ Performance Software was developed entirely in-house on 034Motorsport's Development B9 RS5. The calibrations were then refined on multiple enthusiast-owned beta tester cars around North America.

Included at no extra cost is the Stage 1 Dynamic+ Performance TCU Software for the B9/B9.5 Audi RS4 & RS5 equipped with the AL552 8-Speed ZF8 transmission to further enhance the shifting and acceleration of your ZF8 Equipped 2.9TT! Flashed directly through your vehicle’s OBD-II port, 034Motorsport’s proprietary calibrations for the AL552 TCU safely and effectively raise the torque limits of the ZF8, allowing your car to make use of Stage 1 Performance Software.

034Motorsport Engineers develop special in-house tools that allow us to access the firmware and maps inside the factory ECU, this level of engineering is required to prevent workarounds and bandaids that many aftermarket companies resort to. 034Motorsport engineers and optimizes the ECU calibrations just like Audi engineers would, but accessing the source of how the ECU controls the engine and making changes at the base level.

This is the ONLY way 034Motorsport can ensure the calibrations meet the high standards for ultimate power with smooth drivability, perfect function, reliability and added functions and features even beyond what the factory programming can provide.

Why is AL552 ZF8 TCU Software necessary on the EA839 2.9TT?

As with any automatic transmission vehicle, the ECU and TCU computers work synchronously to properly apply torque to the vehicles drivetrain in a safe and reliable manner. Within both the ECU and TCU, there are factory safety tables that limit overall torque output based upon what the factory first tuned the car for. The ECU reports the output of torque from the engine to the TCU, and the TCU decides if this is suitable, or too much. If it is too much, the TCU will command the ECU to reduce torque output based upon its safety tables.

034Motorsport takes a holistic approach with its Dynamic+ tuning, and aims to retain as many OEM safety protocols as possible. While it is possible to tune around the factory TCU torque limiters from the ECU side, this is done at the expense of torque safety features that are integral in keeping your transmission running safely. 034Motorsport’s calibrators tune the ECU to work with the TCU to provide accurate torque values, and recalibrate the appropriate safety ranges for the TCU. Taking these extra steps to retain OEM safety systems on the ECU and TCU side is just one of the many reasons that Dynamic+ software provides substantial yet reliable performance increases.

We are happy to provide the Stage 1 Dynamic+ TCU tuning at no additional cost (£150 value) to the customer in order to ensure that you are maximizing the performance and reliability of your 2.9TT equipped vehicle!

ECU Software Features:
- Increased Horsepower & Torque Throughout the Power Band
- Refined Throttle Mapping for Enhanced Throttle Performance
- Flashed Directly to the ECU VIA The Factory OBD-II Port
- Improved Power Delivery, Accelleration and Driving Characteristics
- Speed Limiter Removed for Increased Top Speed
- Available in 95 RON (91 American) and 98 RON (93 American) Octane Calibrations
- Track Tested to Ensure Consistent Power Delivery

PERFORMANCE TCU STAGE 2 SOFTWARE FEATURES:

Improved Torque Management
As with any automatic transmission vehicle, the ECU and TCU computers work synchronously to properly apply torque to the vehicle's drivetrain in a safe and reliable manner. Within both the ECU and TCU, there are factory safety tables that limit overall torque output based upon what the factory first tuned the car for. The ECU reports the output of torque from the engine to the TCU, and the TCU decides if this is suitable, or too much. If it is too much, the TCU will command the ECU to reduce torque output based upon its safety tables.

034Motorsport takes a holistic approach with its Dynamic+ Tuning, and aims to retain as many OEM safety protocols as possible. While it is possible to tune around the factory TCU torque limiters from the ECU side, this is done at the expense of torque safety features that are integral in keeping your transmission running safely. 034Motorsport’s calibrators tune the ECU to work with the TCU to provide accurate torque values, and recalibrate the appropriate safety ranges for the TCU. Taking these extra steps to retain OEM safety systems on the ECU and TCU side is just one of the many reasons that Dynamic+ software provides substantial yet reliable performance increases.

Optimized Shift Points
In order to take advantage of the increased powerband from the turbochargers, Dynamic+ Tuning optimizes the shift points in all driving modes to maximize acceleration during wide open throttle scenarios.

Improved Shift Speeds
To further enhance the acceleration of your Audi, the ZF8 shift times are dramatically decreased in all driving modes, which ultimately results in quicker acceleration. Shift times are now up to 70% faster!
Shift pressures are also increased in Sport Mode to maximize performance. In Sport Mode, you will notice less lazy shifts, more firm shifts, which ultimately results in quicker acceleration.

AMAX Shifting
AMAX Shifting is a shifting strategy that stands for “Acceleration Maximum.” These gear shifts are the fastest and quickest possible for optimal acceleration . These are activated in shifting after launching your vehicle from a stop using launch control.
AMAX is now activated in the 4. When in AMAX mode, line pressures in the transmission have been optimized to safely increase shift speeds.

Increased Launch Stall RPM
The launch stall RPM has been raised for a significant increase in force, allowing you to get off the line as fast as possible.

Delay Time Between Launches Reduced
The delay time between launch control activations has been shortened. This is useful when drag racing to heat up tires using launch control, and re-activate quickly before launching down the drag strip!

034Motorsport B9/B9.5 Audi RS4 & RS5 EA839 2.9TT ECU Stage Descriptions:

STAGE 1
034Motorsport Stage 1 Performance Software for the EA839 2.9TT engine running pump gas or ethanol is engineered to safely increase the horsepower and torque with no hardware required. Due to the significant addition of torque from just Stage 1, the 034Motorsport AL552 ZF8 TCU tune is required to be run in parallel with our ECU tuning.In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation and further control of the vehicle when driving on track.
034Motorsport EA839 2.9TT Performance Software is flashed via the factory OBD-II port, and does not require any physical modification of the factory ECU. Stage 1 is available in 91 Octane, 93 Octane, and E85. ALL FILES ARE US (MON+RON) RATING, ROW OCTANE RATINGS MAY DIFFER.

034Motorsport B9 Audi RS4 & RS5 AL552 ZF8 TCU Stage Descriptions:

Stage 1
(Included with Purchase of 034Motorsport 2.9TT EA839 ECU Tuning)
034Motorsport Stage 1 Transmission Performance Tuning Software for the AL552 is included in the Dynamic+ Tuning Bundle with our Stage 1 ECU software. The Dynamic+ ECU Tuning accurately reports torque values to the TCU to ensure that all safety systems are intact in both control units, and the added torque from tuning is properly adjusted for when driving/shifting, including all safety systems designed to protect the engine and transmission. This results in better shift quality as the transmission is not having to reduce engine torque or having to adapt to misreported inputs.

Stage 2
The 034Motorsport Stage 2 Transmission Performance Tuning Software for the AL552 is designed to further improve the drivability and performance of your Dynamic+ Tuned Audi B9/B9.5 RS4 or RS5. Dynamic+ Stage 2 TCU Software can be used with our Stage 1 ECU software. 034Motorsport Stage 2 TCU Tuning further improves shifting performance and speed for casual and track driving in all driving modes. The result is a noticeable improvement in acceleration without any sacrifice in comfort or reliability. Stage 2 TCU Tuning is currently available for both B9 and B9.5 RS4 and RS5!
